KM 2312 - Gas cooktop


KM 2312
Gas cooktop with a mono wok burner for special applications.

Price: $ 2,449.00
KM2312

More product information

Gas cooktop with a mono wok burner for special applications.


  • Simple controls – single-handed operation via rotary dial control
  • Professional design – 600 mm wide stainless steel trough
  • Particularly versatile – 3 burners incl. 1 mono wok
  • Extremely safe – GasStop function

    GasStop

    Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.
  • Easy cleaning – dishwasher-safe ComfortClean pot rests

Downloads - KM 2312

User manual & Assembly

Description Format Download
Operating instructions accessoriespdf Download
Guarantee bookletpdf Download

CAD data / BIM data

Description Format Download
3D data RFAzip Download
3D data DWGzip Download
3D data RVTzip Download
3D data FBXzip Download
3D data IFCzip Download

Installation drawings

Installation drawings

Whether you want to replace a household appliance or planning a kitchen - here you will find all the relevant installation diagrams for your Miele appliance.

If you want to download an installation diagram, please click on the appropriate image and the high-resolution version is displayed. To download, click the right mouse button and save the image on your computer.

Please note that the installation and maintenance of our equipment should only be performed by a licensed contractor. For questions, please call us and we will advise you without any obligation!

Descriptions

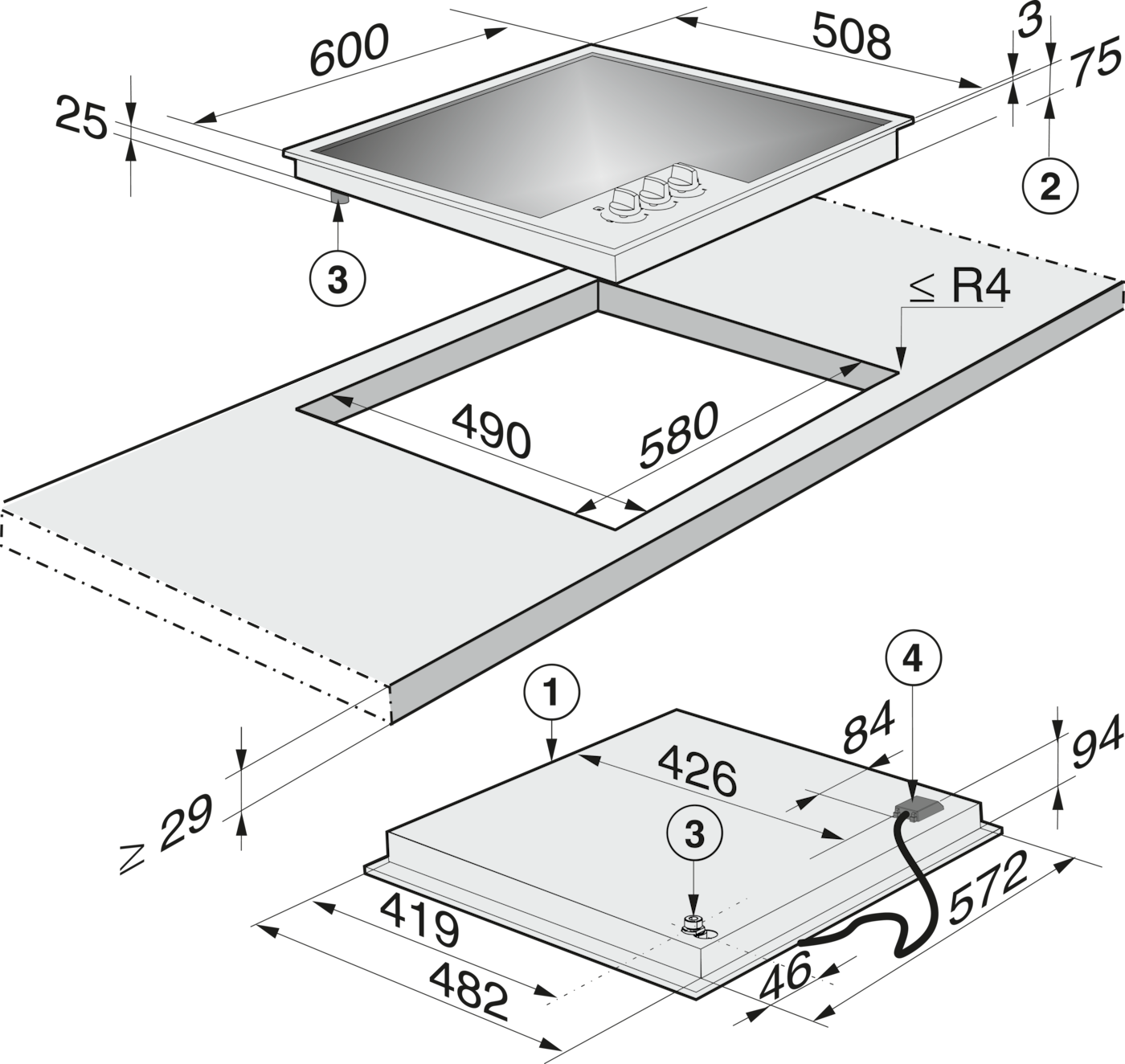

KM 2312 (installation drawings)

1. Front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable L 2000 mm

Descriptions

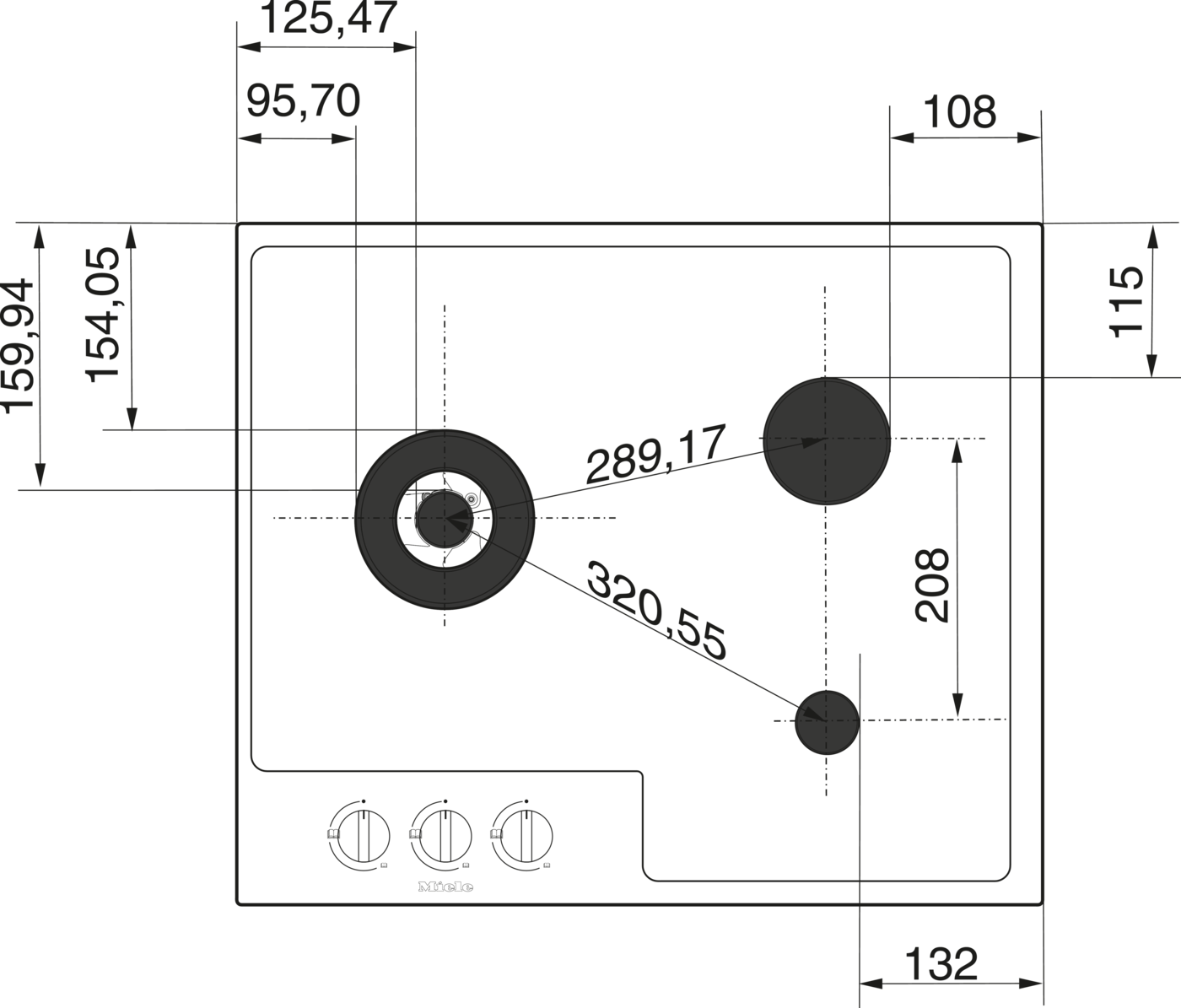

KM 2312 (installation drawings) AUS

1. Front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable L 2000 mm

Descriptions

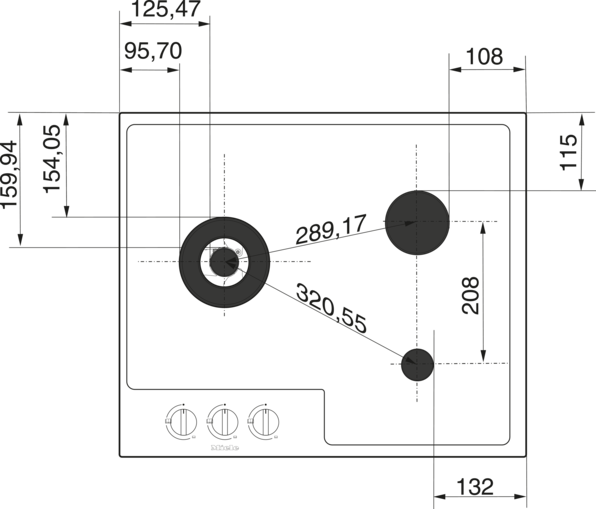

KM 2312 (installation drawings)

1. Front, 2. Building-in depth, 3. Gas connection R 1/2 - ISO 7-1 (DIN EN 10226), 4. Mains connection box with mains connection cable L 2000 mm

Images serve as examples to illustrate the product benefit. Actual feature may vary per model.
