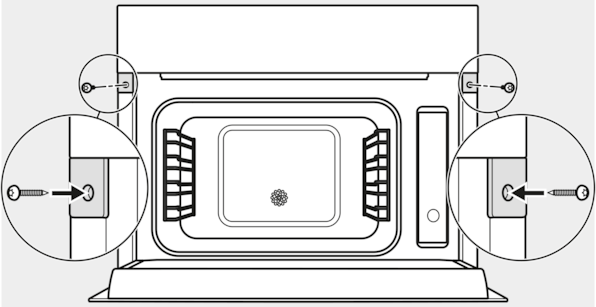

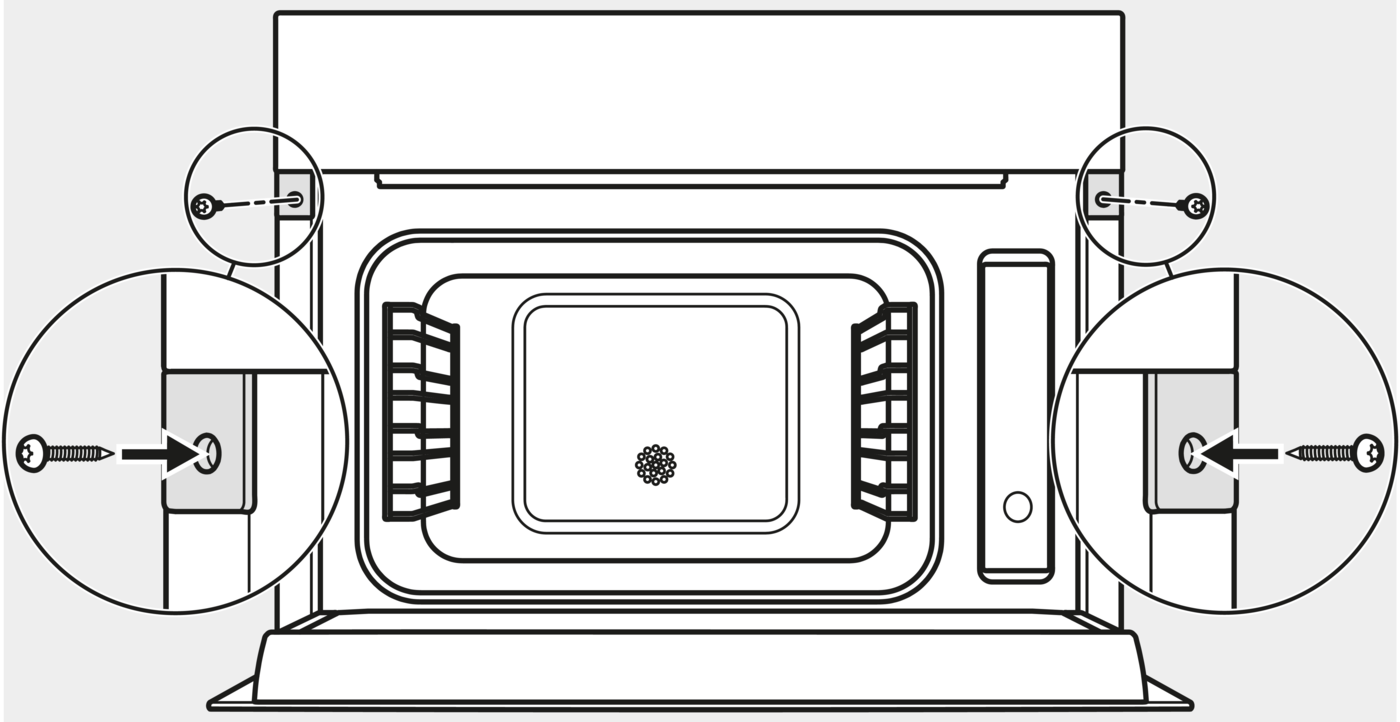

Screw joint DG DGM, installation drawing
DG 7440Built-in steam oven for healthy cooking with automatic programmes, networking and sous-vide cooking.
More product information
Built-in steam oven for healthy cooking with automatic programmes, networking and sous-vide cooking.
- Large clear text display with sensor controls – DirectSensor
DirectSensor
Direct selection with 4-line clear text display: sensor controls can be used to directly select the desired function. Other options and settings are available via the 4-line clear text display. - Perfect results – DualSteam technology
DualSteam
Maximum enjoyment: the steam spreads evenly and rapidly – for perfect cooking results. - Perfect results guaranteed every time – Automatic programmes
Automatic programmes
Perfectly cooked, every time: cook a whole range of dishes conveniently – with success guaranteed. - Oven compartment lighting – 2 LED spotlights
LED lighting
Spot on: The LED spotlights illuminate the oven compartment perfectly and are particularly energy-efficient. - Network-enabled WiFi appliance – Miele@home
Downloads - DG 7440
User manual & Assembly
Installation drawings
DG DGM, installation drawing
ESW7x10, EVS7010, DG7x4x, DGM7x4x installation drawings
A) 22 mm glass, 23,3 mm stainless steel

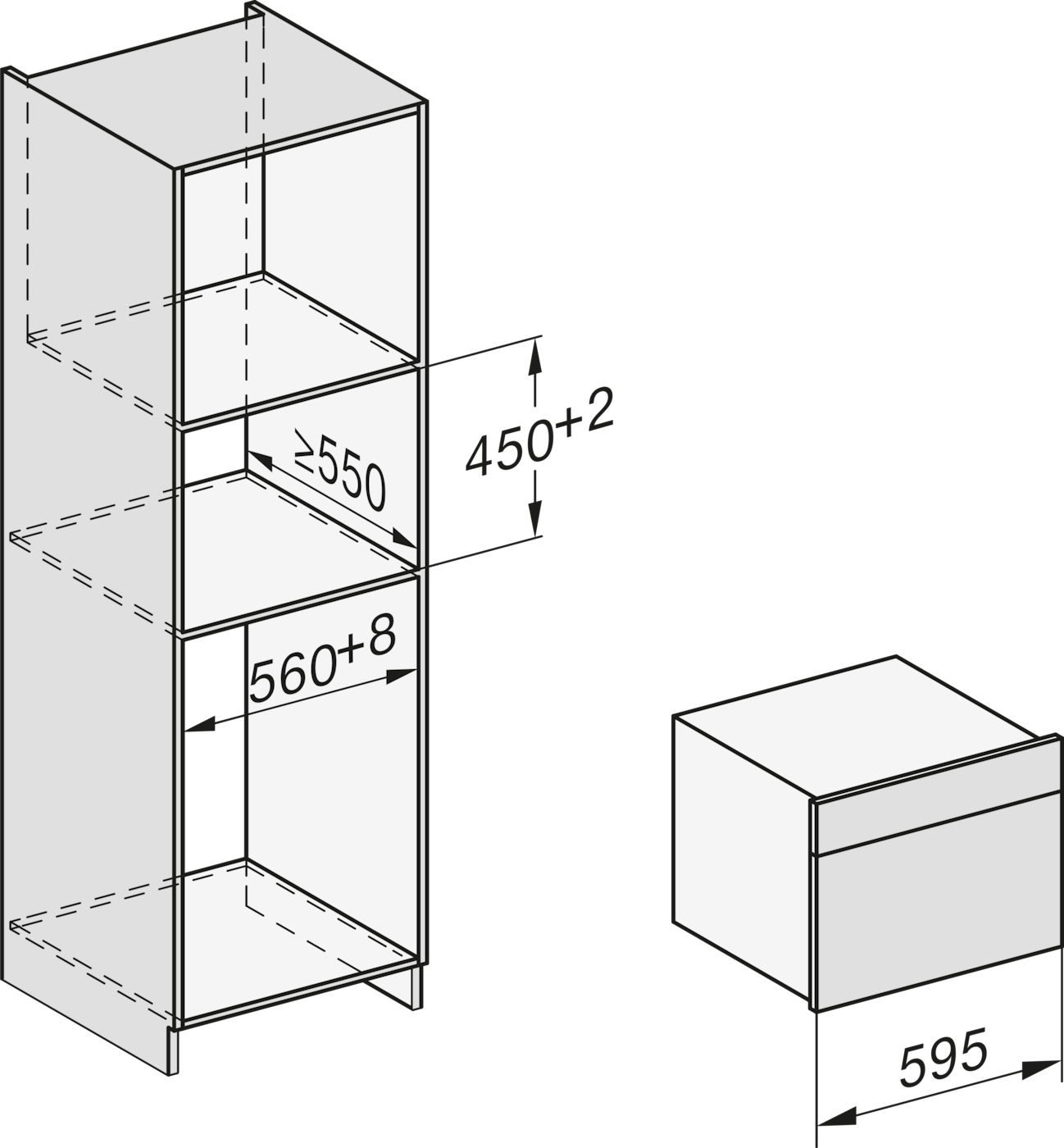

built-in DG DGM DGC XL build-under, installation drawing
Installation DG, DGM, DGC XL, ESW7x20 installation drawings

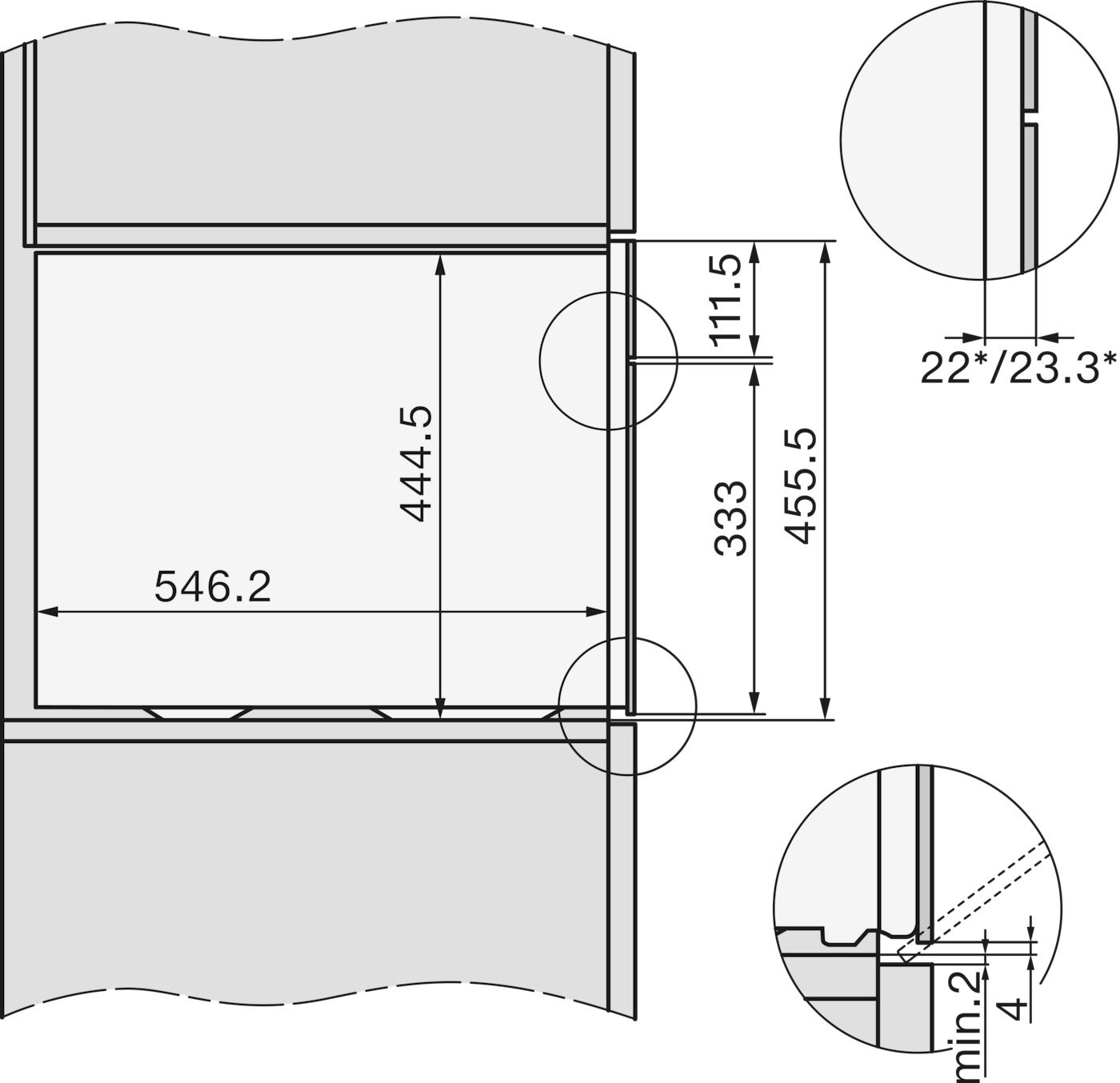

side view DG DGM, installation drawing, GB, AU
22 mm glass, 23,3 mm stainless steel
H7000 handle, glass, installation drawings
1) 400 mm, 2) 360 mm, 3) 47 mm, 4) 27 mm, 5) 32.5 mm

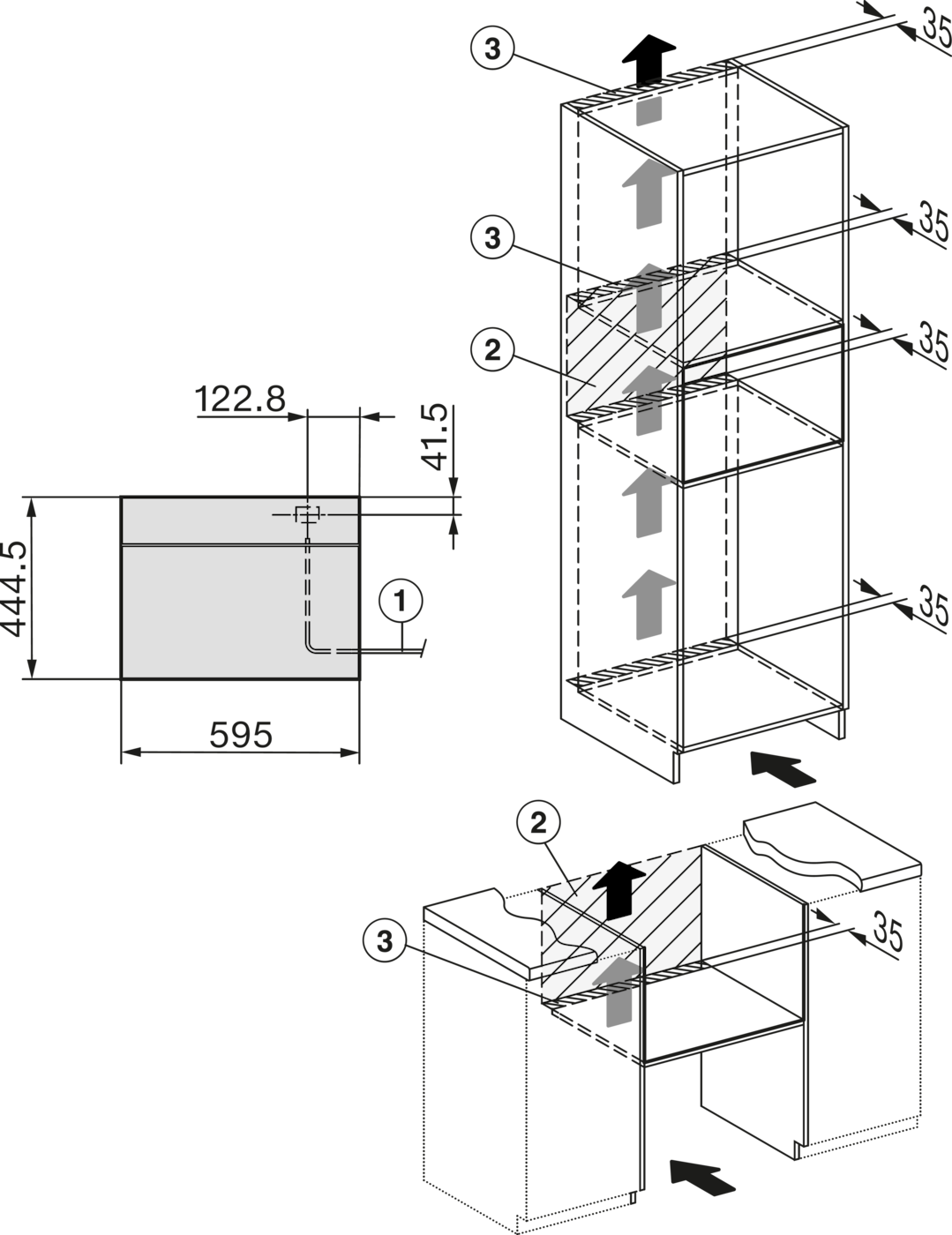

installation DG, installation drawing, GB, AU
1) Mains connection cable, L=2000 mm, 2) No connection in this area, 3) Ventilation cutout min. 180 cm²
side view, DG, DGM, ESW7x20 installation drawings
Installation_DG_DGM_DGC_XL_ESW7x10_EVS7010, installation drawings
